Hv Test Probe

Can be used with either scopes or meters. To do this i followed the very helpful instructions on the basics of high voltage probe design page. A high voltage single ended probe is typically used for measuring ground referenced signals up to 40 kv.

home screen bts logo desktop wallpaper hd hk ga ghdt honda civic 2015 hatchback interior hlum i hlum h hk honor 8 lite 2017 honda rs 150 modified thailand hipster aesthetic desktop wallpaper tumblr hd

Tt Hvp40 Testec Multimeter Test Lead Tt Hvp40 High Voltage Probe Cat I Rs Components

High Voltage Probe

Fantastic High Voltage Meter Or Probe To Solve Complicated Repair Problems

High Voltage Test Probes Up To 10 000 V Dc Sps Electronic

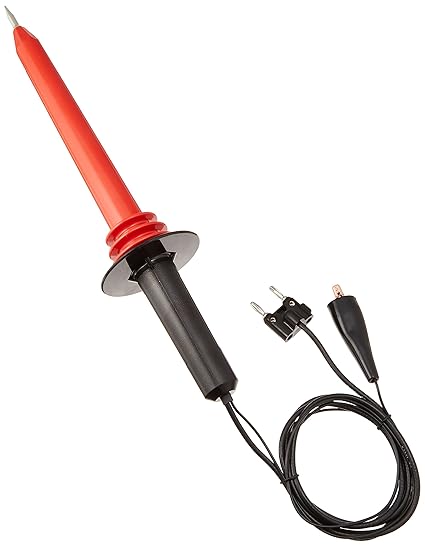

Fluke 80k 40 Probe High Voltage Amazon Co Uk Business Industry Science

Tt Hvp 40 Testec Test Probe Connector High Voltage Point

It puts out dc voltage using a cockroft walton voltage multiplier so dc with ripple.

Hv test probe. The high voltage probe is ce conforming and corresponds to the the highest saftey specifications according to din en 50 191. Choose from phasing sticks safe discharge rods voltage indicators and more. After checking for professional ones i realized that i could make one from some spare parts from my lab. 10mohm 10kohm.

Heres the spec of the one i made today. High voltage single ended passive probes are suitable for a wide range of applications where ground referenced high voltage measurements must be made safely and accurately. This is in most cases a situation where high voltage tests a carried out manually. Diy high voltage probe for digital multimeters.

High voltage passive probes. 0 1 15kv 0 1 12 5kv cont up to 15kv for 5 sec. Vd series high voltage probes. So my probe is intended to work with dc only.

This means the probe can only be used to make measurements on energy limited circuits within equipment. The 80k 40 is a high voltage probe designed to extend the voltage measuring capability of an ac dc voltmeter to 40 000 volts peak ac or dc overvoltage category i. Hv test measurement. Whatever your high voltage test requirements are we have a solution for you.

I needed a high voltage probe for measuring the voltage from my hvg10 high voltage power supply. Pvm series portable high voltage probes. Max dc pulsed v kv. We ve been designing and manufacturing high voltage test equipment for over 37 years and continue to innovate and bring the best instruments to the market.

I was in a need for a high voltage probe for my multimeters to check various capacitor banks and high voltage dc charging circuits. Hv probe is a probe designed to measure hv lines it have a ratio 1000 1 in mthis one so if the input to the hv probes is 1000v 1kv it will puts out 1v dc ac depends on the input. There are several fixed attenuation probes covering a range from 1 kv to 6 kv and varying transient overvoltage ratings. Buy high voltage passive probe oscilloscope test probes voltage frequency.

However some single ended probes are designed for instruments with isolated or floating inputs for measurements that are not ground referenced. Newark offers fast quotes same day shipping fast delivery wide inventory datasheets technical support. The high voltage probe should be applied everywhere where people need to be protected from high voltages. Examples include high voltage within televisions or photo copy machines.
